Photos of my theater as it exists today.
As with all photos on this site, click on the thumbnail once to see the photo enlarged full-screen, then click on the full screen photo to see that image zoomed to full resolution.
Full photo of our Home Theater, higher resolution and full image height. (Note: this image was created from a five image HDR composite that was shot hand-held. Close inspection will show the flaws in the image because it was hand-held. I intend to eventually replace this image with a better tripod shot, without multiple image differences.
-

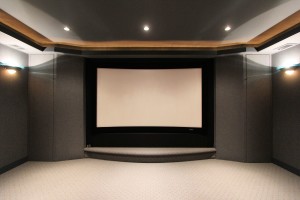

- Front screen doors closed.
-
- Front screen doors open exposing subwoofers for the photo.
-

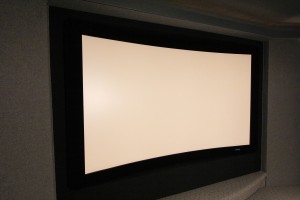

- Stewart Curved Screen. with StudioTek screen material.
-

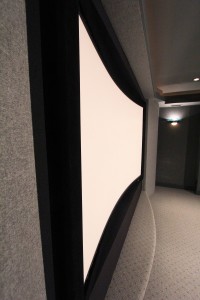

- Edge on view of the Stewart curved screen.
-

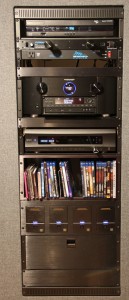

- My Middle Atlantic Eqipment Rack with Equipment (12/19/2015)
-

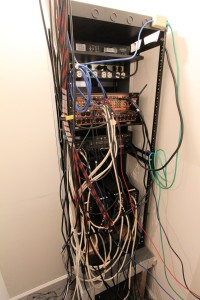

- Backside of my equipment rack.
-
- Screen door closed.
-

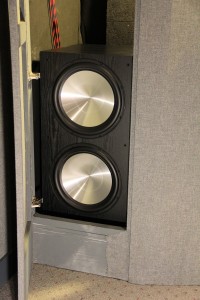

- Screen Door open showing subwoofer.
-
- Rythmik F25 Subwoofer. The left one with my proscenium door removed.
-
- The amplifier settings on the back of the F25 subwoofer. (My amp is slightly different but the controls are identical).
-

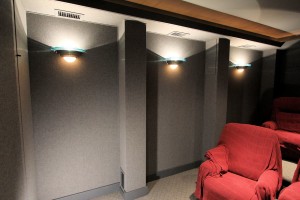

- One side of the theater has HVAC supply vents, the other side has HVAC return vents. The vents are in the soffit and also in the first and third columns on the floor – facing forward to remain inconspicuous.
-
- Piping, made by hand by the Peiffers.
-

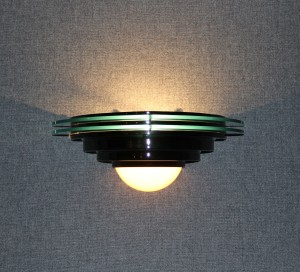

- Wall Sconce.
-

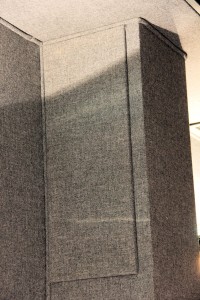

- Column with hidden surround speaker closed.
-

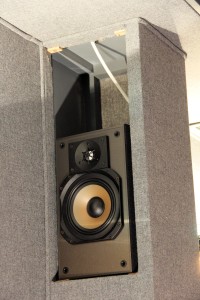

- Column with hidden surround speaker open for photo.
-

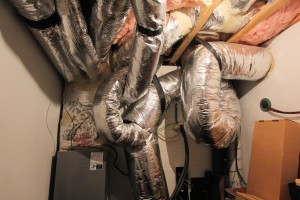

- The theater has its own dedicated 1.5 ton HVAC system. That large return is looped to avoid sound transmission back into the theater from the blower.
-

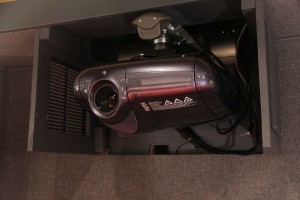

- Projector Sim2 C3X Lumis.
-

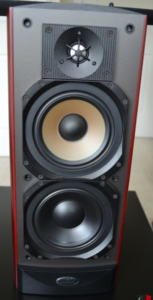

- Photo of the front of my L,C,R Speakers. Paradigm Active 40s
-

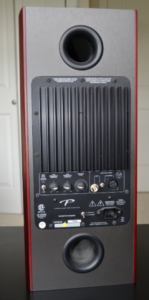

- Photo of the rear of my L,C,R Speakers. Paradigm Active 40s (the Active 40 has an amplifier built in, so you can see the cooling fins for the amp)
